Drive Shaft Seal 0A5311113A

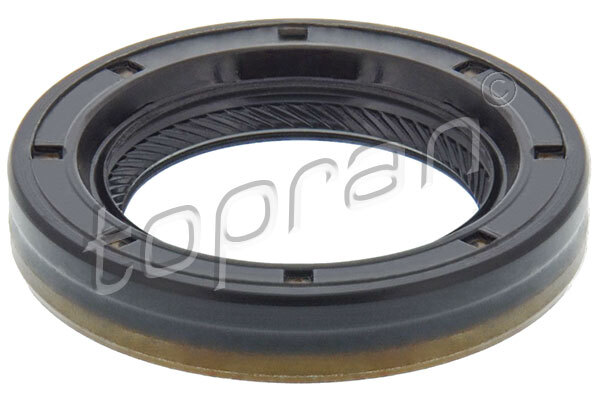

IMAGE IS EXAMPLE ONLY, BRAND MAY VARY

A driveshaft seal is an essential component in a car that helps prevent leaks of fluids from the driveshaft area. It is specifically designed to seal the gap between the driveshaft and the transmission or differential. The driveshaft, which transfers power from the engine to the wheels, rotates at high speeds and generates a significant amount of heat and pressure. The driveshaft seal ensures that lubricating fluids, such as transmission fluid or differential oil, remain inside the system and do not leak out onto the ground. By maintaining a tight seal, the driveshaft seal not only prevents fluid loss but also protects the drivetrain components from potential damage or premature wear.

In addition to preventing fluid leaks, the driveshaft seal also plays a crucial role in keeping out contaminants like dirt, dust, and moisture. These external elements can cause corrosion, wear, and damage to the driveshaft and other vital drivetrain components. As a result, the driveshaft seal acts as a barrier, effectively sealing the driveshaft area from any external contaminants. This helps to ensure the optimal performance and longevity of the driveshaft and its surrounding components, ultimately contributing to the overall smooth operation and efficiency of the vehicle.

Inner Diameter [mm]

30

Outer diameter [mm]

46

Height [mm]

8

Material

ACM (Polyacrylate)

Dust Cover

with dust lip

Swirl Type

Right-hand Twist
