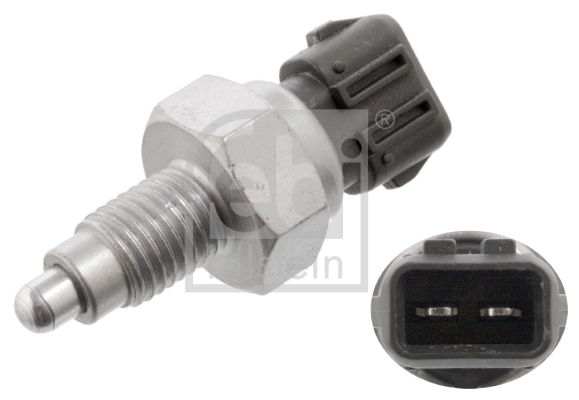

Reverse Light Switch 020941521A


IMAGE IS EXAMPLE ONLY, BRAND MAY VARY

Description: The reverse light switch is an essential component in a car's electrical system. It is designed to activate the reverse lights whenever the vehicle is shifted into reverse gear. This switch is typically located on the transmission or gearbox and is connected to the car's wiring harness. When the driver engages the reverse gear, the switch detects this action and sends a signal to the reverse lights, causing them to illuminate. Functionality: The reverse light switch operates by completing an electrical circuit when the vehicle shifts into reverse. It typically consists of a plunger or lever mechanism that is triggered by the movement of the gear selector. When the switch is activated, it closes a set of contacts, allowing current to flow through the circuit. This current then powers the reverse lights, enabling them to emit a bright white light at the rear of the vehicle. The purpose of these lights is to provide visibility to other drivers and pedestrians, indicating that the car is reversing.

Quantity

1

Outer thread [mm]

M12 x 1,5

Operating Mode

Electric

Control Design

Pressure switch control

Weight [kg]

0,035
