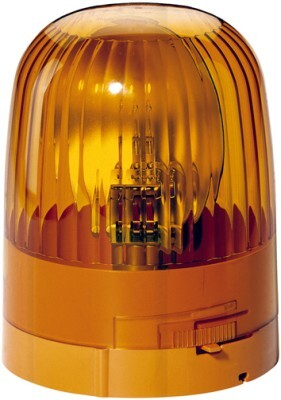

Hella Rotating Beacon 1786

Mounting Type

mounting

Mounting Type

Bolted

Light Design

Halogen

Rated Voltage [V]

12

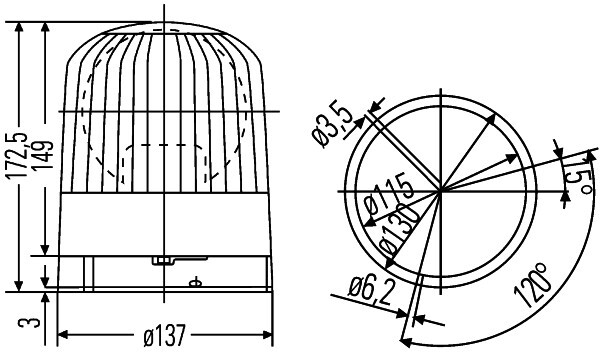

Height [mm]

173

Outer diameter 1 [mm]

137

Light Function

with rotating warning signal

Light Colour

Yellow

Supplementary Article/Supplementary Info

with bulb

Lamp Type

H1

Plug Type

Blade Terminal

Protection Type (IP Code)

IPX9K

Protection Type (IP Code)

IP5K4K

Test Mark

ECE-R65

Test Mark

ECE-R10

Test Mark

RCM

Lens Colour

Yellow

Housing Colour

Yellow

Rotating beacon RPM [1/min]

150

Power Consumption [W]

55

Housing material

Plastic

Operating temperature from [?C]

-40

Operating temperature to [C?]

60

Lens Material

PMMA (Polymethylmethacrylate)

Weight [g]

470
