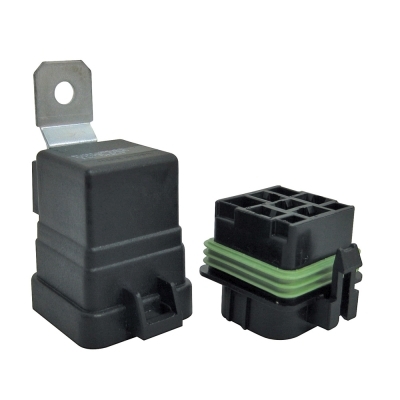

Hella Main Current Relay HMWPR002

A relay in a car is an electrical component that acts as a switch. It is typically used to control high-current circuits or circuits connected to different voltage levels.

The relay works by using a low-current signal to activate an electromagnet that, in turn, closes or opens the contacts of the relay. This enables the relay to control power flow to various components in the car.

Rated Voltage [V]

24

Protection Type (IP Code)

IP 54

Protection Type (IP Code)

IEC 529

Supplementary Article/Info 2

with clamp

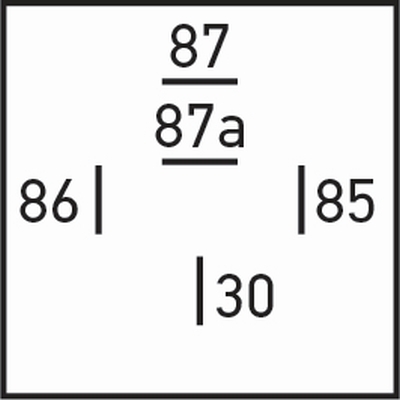

Number of Poles

5

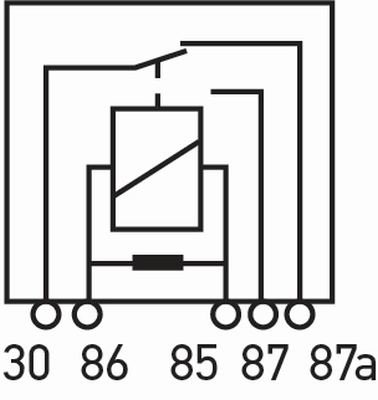

Combi Switch Function

Changeover Contact

Resistance [Ohm]

300

Must be installed/removed by a specialist!
