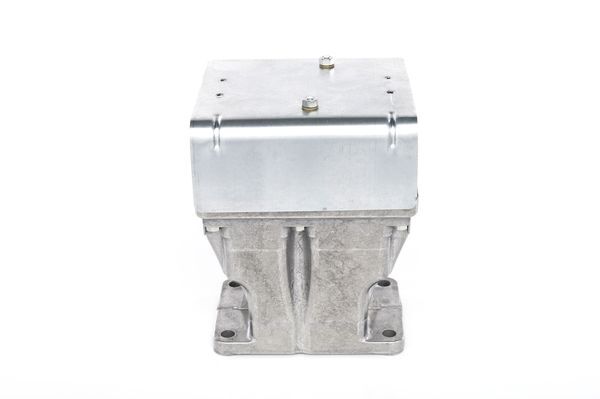

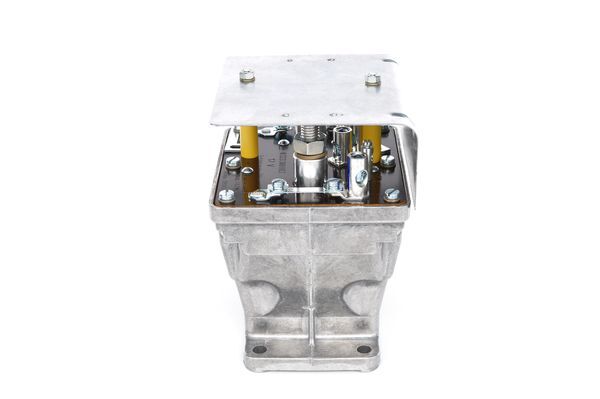

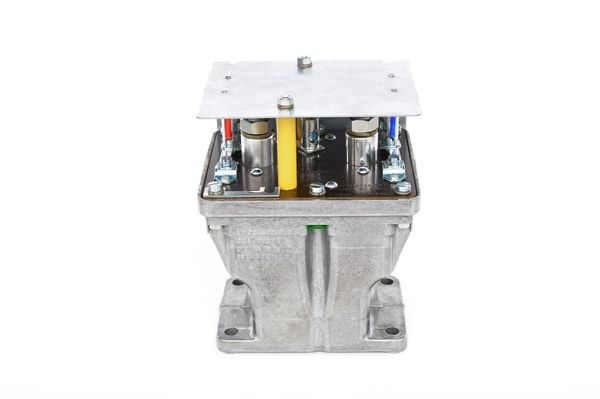

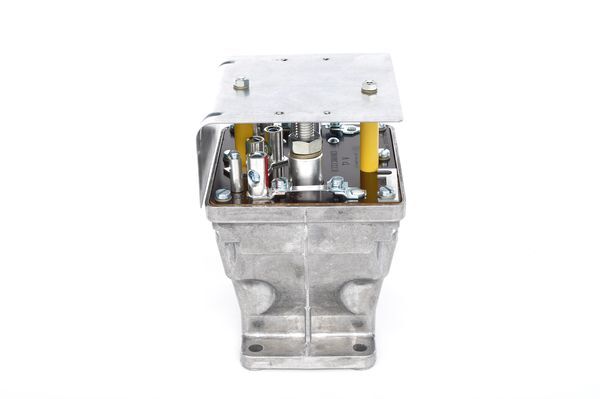

Genuine Bosch Battery Relay 0333300003



Reliably perform switching operations in a wide range of vehicles due to its compact design: The Bosch relay allows rated switching currents of up to 75 A and has a nominal voltage of either 12 or 24 volts.

Features and Benefits:

  • Rated switching currents of up to 75 A: For high power
  • Developed to be durable and robust through accurate processing and the use of high-quality materials: Allows for up to 250 000 switching cycles
  • Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance
  • Temperature resistant design: Provides the ability to cope with ambient temperatures reaching from -40 °C up to +100 °C

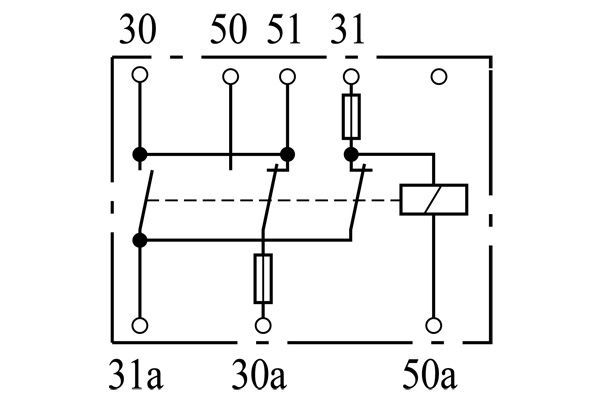

Combi Switch Function

with starter lockout

Combi Switch Function

High Performance Contact

Rated current [A]

75

Rated Voltage [V]

12

Number of Poles

2

Relay function

Battery main switch

Housing Type

Metal Housing

Temperature range from [°C]

-30

Temperature range to [°C]

100

Length [mm]

124

Width [mm]

110

Height [mm]

160
