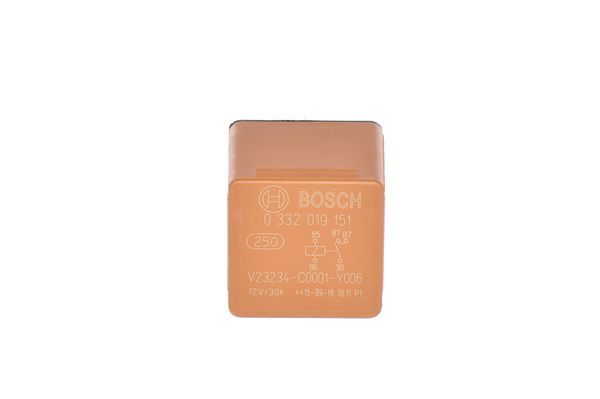

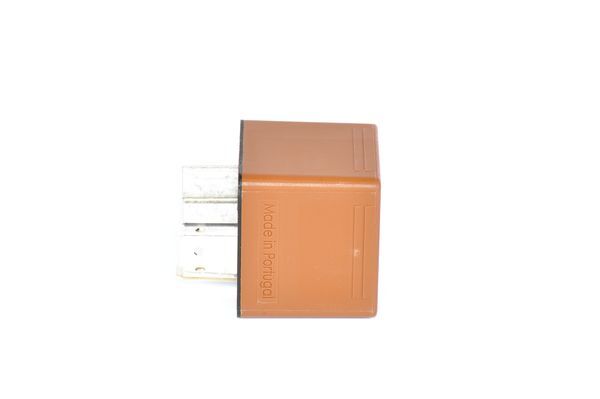

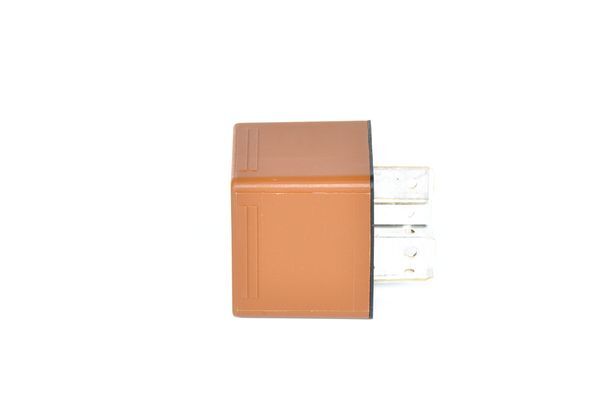

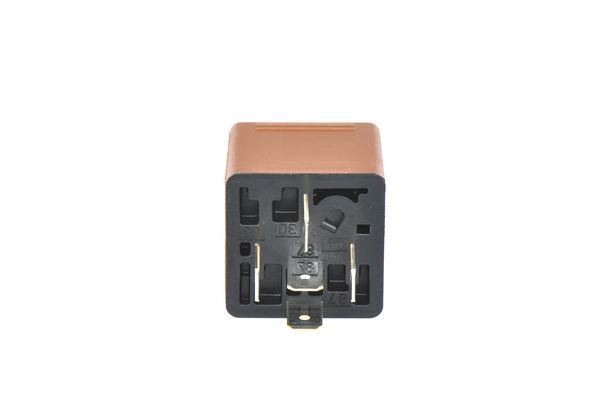

Genuine Bosch Relay 0332019151



Reliably perform switching operations in a wide range of vehicles due to its compact design: The Bosch relay allows rated switching currents of up to 30 A and has a nominal voltage of either 12 or 24 volts.

Features and Benefits:

  • Rated switching currents of up to 30 A: For high power
  • Developed to be durable and robust through accurate processing and the use of high-quality materials: Allows for up to 250 000 switching cycles
  • Base plate and housing made from fiber-reinforced polyamide: High corrosion resistance
  • Temperature resistant design: Provides the ability to cope with ambient temperatures reaching from -40 °C up to +100 °C

Combi Switch Function

Lock

Rated current [A]

30

Rated Voltage [V]

12

Number of Poles

5

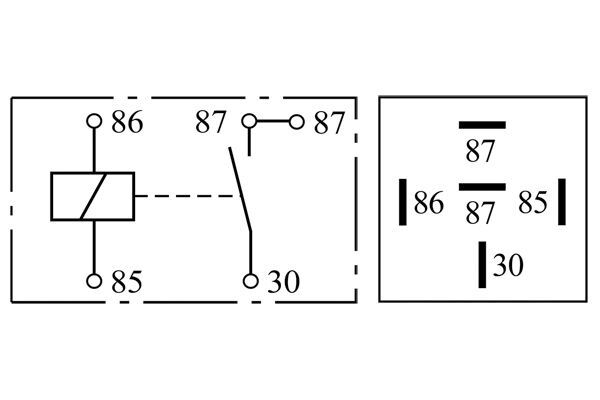

Relay function

Normally open contact

Housing Type

Synthetic Material Housing

Combi Switch Function

without light dimmer function

Temperature range from [°C]

-40

Temperature range to [°C]

100

Colour

Black/Grey

Supplementary Article/Supplementary Info

without holder

Resistance [Ohm]

16
