Starter Motor 059911021D

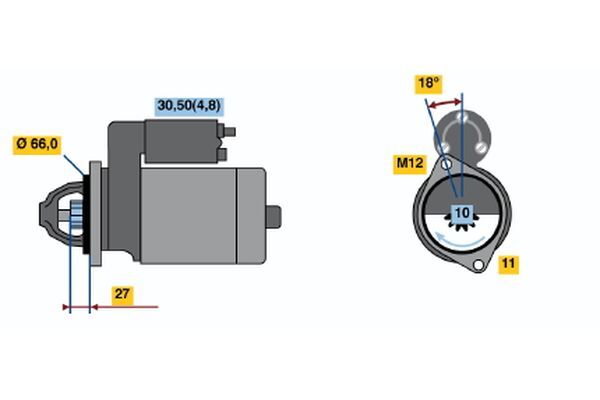

Image is an example only, BRAND MAY VARY

```html

A starter motor in a car is responsible for initiating the combustion process within the engine. It is an electric motor that converts electrical energy into mechanical energy to turn the engine's crankshaft. When the ignition key is turned, an electrical current is sent from the battery to the starter motor. The starter motor then engages with the flywheel, which is attached to the engine's crankshaft, and rotates it to begin the engine's cycle. This rotation generates the necessary force to start the engine's pistons moving, enabling the internal combustion process to begin.

The starter motor plays a crucial role in starting a car's engine. Without a properly functioning starter motor, the engine will not be able to begin its combustion process. The electrical energy supplied to the starter motor is converted into mechanical energy, allowing the engine's crankshaft to rotate. This mechanical energy is necessary for the engine's pistons to move and initiate the combustion sequence. Overall, the starter motor is a critical component in a car's ignition system, ensuring the engine starts and runs smoothly.

```

Voltage [V]

12

Rated Power [kW]

2,2

Number of mounting bores

1

Number of Thread Bores

1

Number of Teeth

10

Clamp

50

Clamp

30

Flange Ø [mm]

66

Rotation Direction

Clockwise rotation

Pinion Rest Position [mm]

23,6

Starter Type

Self-supporting

Thread size

M12

Bore Ø 2 [mm]

11

Length [mm]

230

Position / Degree

links

Connecting Angle [Degree]

17

Jaw opening angle measurement [Degree]

90

Mounting hole angle measurement [Degree]

17
