Features

Used For Connecting Plastic Pipe, Copper Pipe, Stainless Steel Pipe

The Crimping Part Can Rotate 360 Degrees Freely

The Mold Can Be Easily Replaced.

The Same Tool Can Use Different Specifications Of Pipe Fittings

All Stressing Parts Made Of Special Steel Treatment Wit

Small Size, Lightweight

The Product Is A Manual Tool, High Efficiency, Reliable Quality, Easy To Operate

Can Be Transposed Mold, The Same Tools Can Be Crimped Into 16-32mm From The Different Specifications Of Pipe Fittings.



Used For

Widely Used In Power, Communications, Transportation, Petroleum, Chemical, Mining, Metallurgy, Shipbuilding, And Other Fields

For Plastic Pipes, PEX Pipes, Lead Pipes, And Other Brass, Copper Header, Stainless Steel Compression Sleeve, Aluminum, And Copper Jacket Cover

Plumbing Tool, Household Tool Set



Specification

Crimping Force : 6 Ton

Stroke:45mm

Crimping die?

1?U type: ?16mm, ?20mm, ?25mm, ?32m?For Aluminum-plastic Tube?(Including)

2?DN type:?15mm, ?20mm, ?25mm(3 Copper Pipes Dies) (Including)

3?DNI type: DNI15, DN20, DNI25?Not Including)

Fitting Range:12-32mm

Length:580mm

Weight:Appox.6.48kg



Package

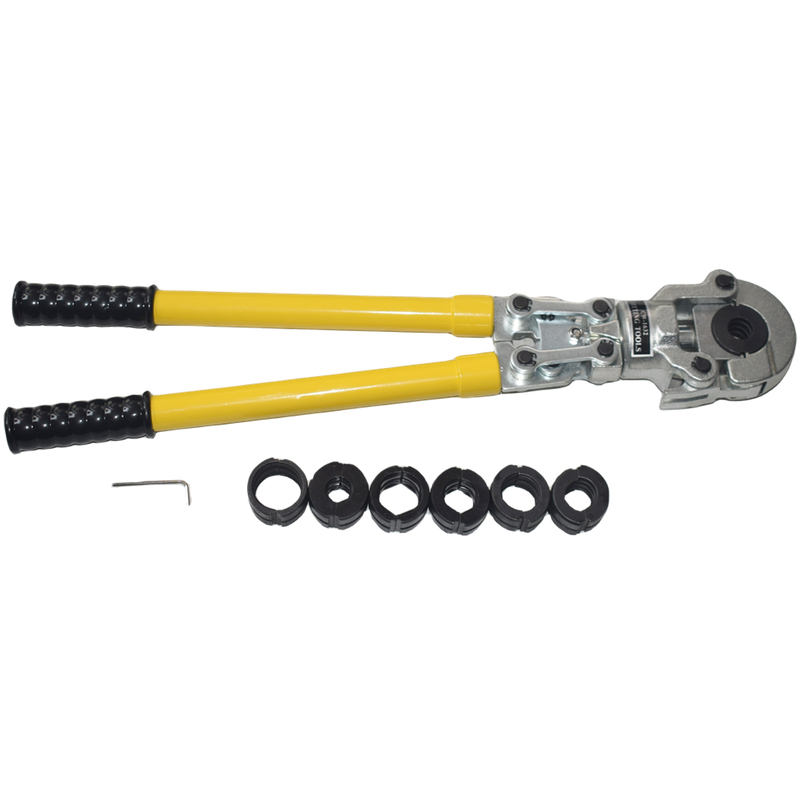

1 x Crimping Tool

7 x Dies:

4 U type dies:?16mm, ?20mm, ?25mm, ?32m?For Aluminum-plastic Tube?

3 Copper Pipe Dies: For DN15 DN20 DN25 Copper Pipes

1 x Instruction

1 x Blow Molded Case
